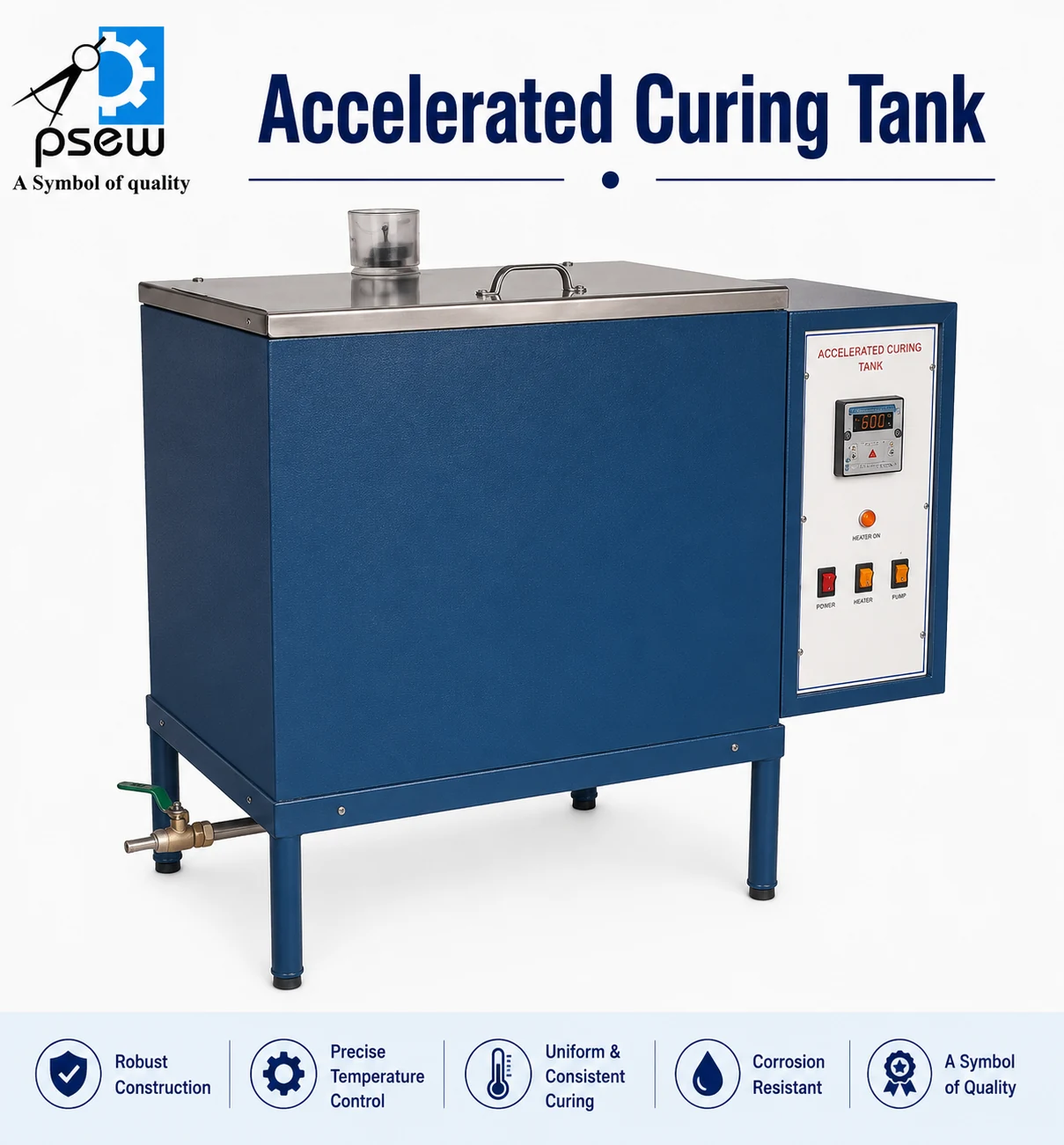

Accelerated Curing Tank

The Accelerated Curing Tank is used to cure concrete cube specimens rapidly under controlled elevated temperature conditions, allowing an early estimate of the 28-day compressive strength to be obtained within hours rather than waiting the full curing period — useful for early quality control decisions on site and in the laboratory. Specimens are immersed in water within the tank, which is heated and maintained at a specified elevated temperature for a set duration as per the accelerated curing method used, before being tested.

Temperature range: Ambient + 5°C to 95~100°C, Curing Temperature for Concrete in lab environment for Temperature range-23+2°C & Relative humidity-50±10%.The tank has been designed to accommodate 150 mm/70.6 mm casted cubes upto 36/72 cubes and fully insulated, complete with a hinged lid, heater, thermostat and recirculation pump. Provision of two removeable racks allowing free circulation of water around each cube. The pump, drain valves and electrical equipment are housed in a compartment located at one end of the tank.
