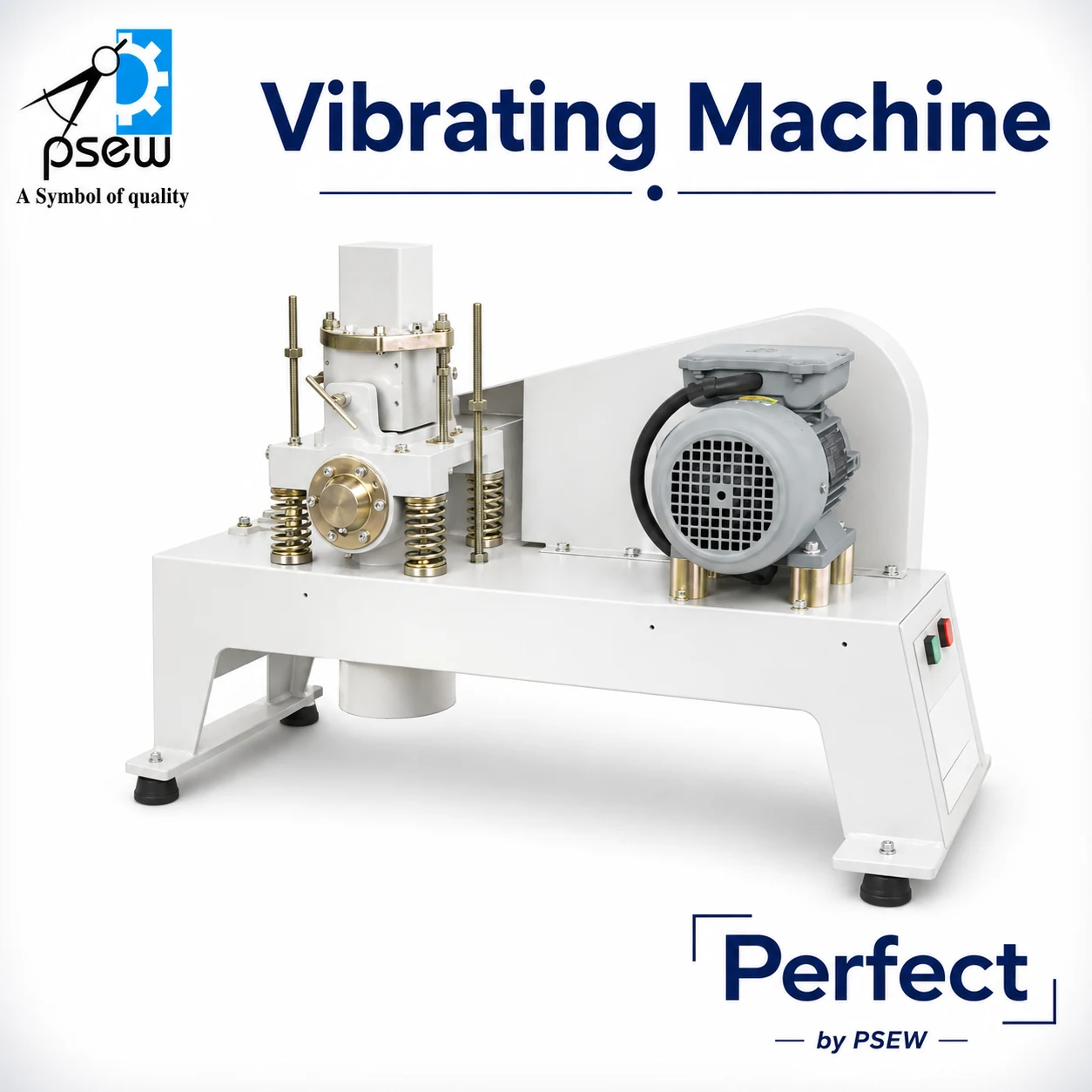

Vibrating Machine
A specially designed Vibration Machine is used for vibrating the mix in moulds at a frequency of 12,000 ± 400 cycles per minute, as per specifications.The Vibrator is mounted over coiled springs and the vibrations are developed by means of a revolving eccentric shaft. The centre of gravity of the vibrator, including the cube and mould, is either at the centre of the eccentric shaft or within 25mm below it. The simple design of the machine facilitates easy assembly and dismantling of the cube moulds. Each machine is supplied one cube mould of 70.6mm.
The equipment consists of one Mould Steel, for 70.6 mm Cube, Side Spring, Supporting Springs (Set of four),
Springs, for Fitting Mould (Set of two), Endless Belt, Belt Guard, Eccentric Shafts with bearing
Suitable for operation on 220V, 50Hz, Single Phase, AC supply.
| Standard Conformity | IS 10080, IS 4031 |
| Operation | Electrically operated, eccentric motor driven |
| Vibration Frequency | Approx. 12,000 cycles vibrations/minute (standard) |
| Power Supply | 220–230V AC, 50 Hz, Single Phase |
| Application | Compaction of cement mortar cube |
