Concrete Testing Equipment

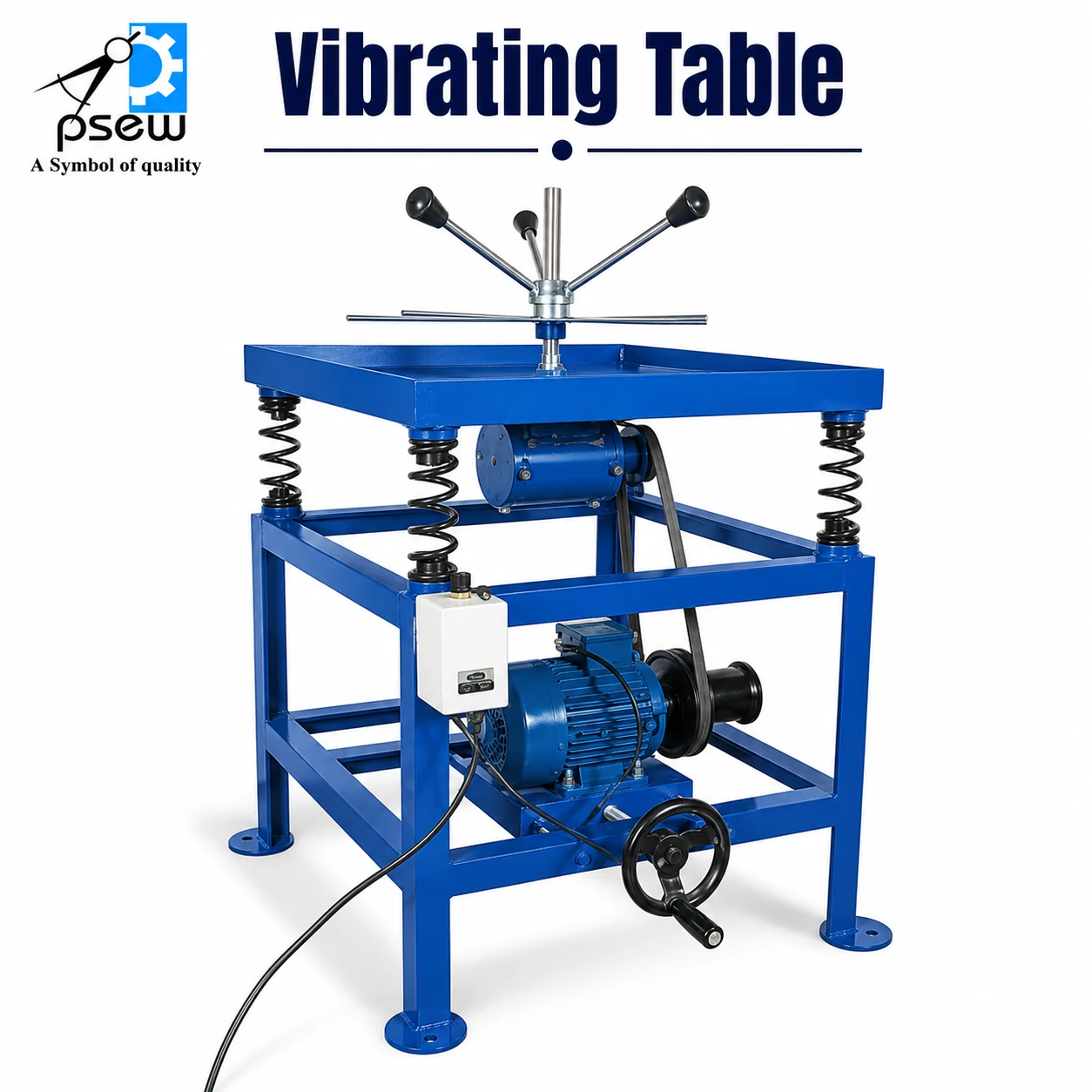

Vibrating Table
The Vibrating Table is used to compact fresh concrete or mortar specimens into cube, cylinder, or beam moulds by imparting controlled vibration, ensuring thorough compaction and removal of entrapped air for consistent, representative test specimens. The mould is clamped or placed on the vibrating platform, which is driven by an eccentric motor to produce vibration at a set frequency for a specified duration.
Specifications6 items
| Standard Conformity | EN 12350-6,7,12390-2,13286-50. |
| Operation | Electrically driven, eccentric motor |
| Vibration Frequency | Approx. 3000–12000 vibrations/minute (model dependent) |
| Power Supply | 220–230V AC, 50 Hz, Single Phase |
| Application | Compaction of concrete/mortar specimens in moulds |
| Sizes | 50x50 cm for 4 Cube moulds and 75x75 cm for 6 cube moulds |
