Bitumen Testing Equipment

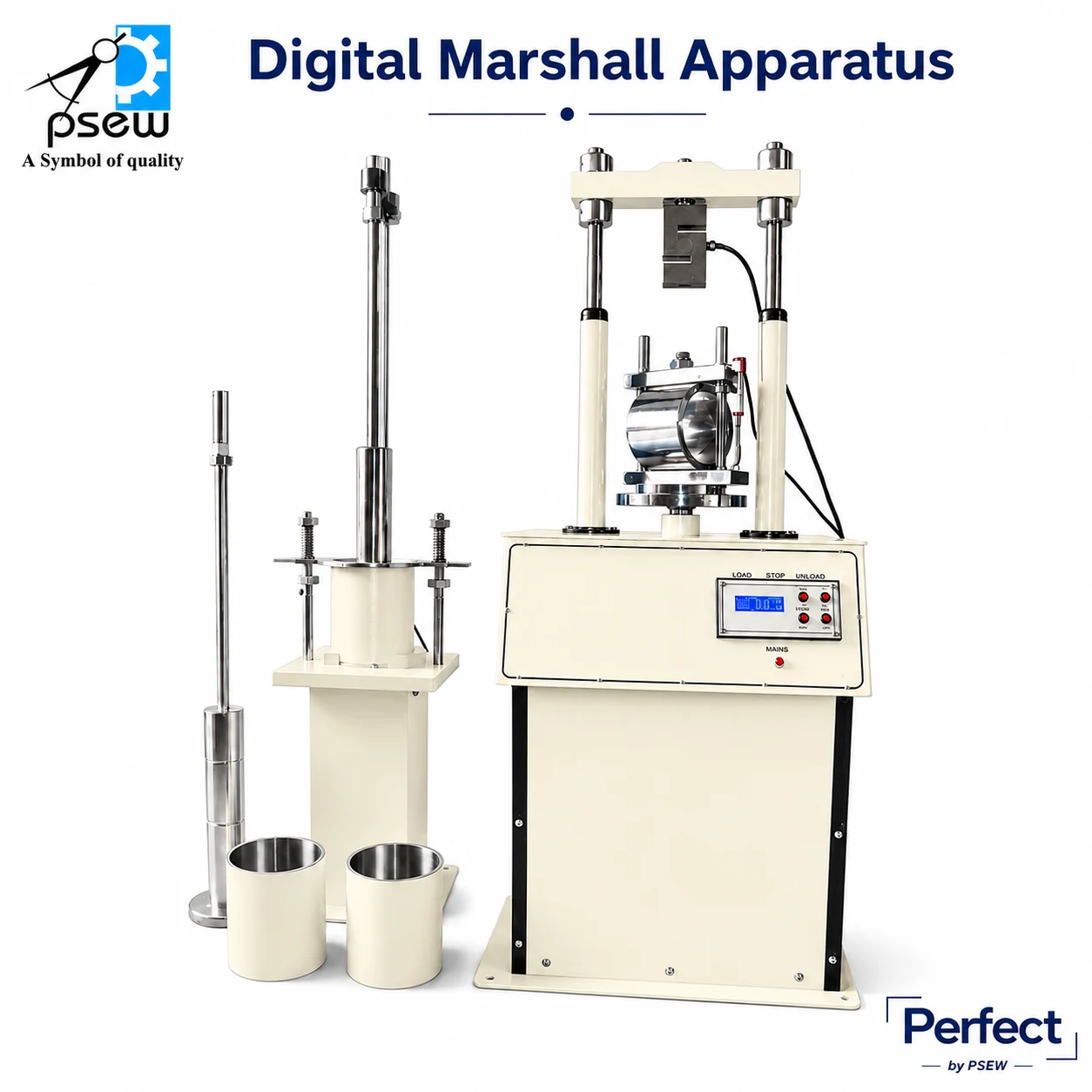

Digital Marshall Apparatus (4/6 inch)
The Digital Marshall Apparatus provides the same 4 inch Marshall stability and flow testing functionality as the standard mechanical unit, but with electronic load cells and digital displays/data logging replacing the traditional proving ring and dial gauges. This improves reading accuracy, reduces operator error, and in many models allows direct printout or software-based recording of the stability-flow curve for each specimen.
Specifications5 items
| Standard Conformity | ASTM D6927, IS 15462 |
| Specimen Diameter | 4 inch (101.6 mm) |
| Load Measurement | Digital load cell with electronic readout |
| Display | Digital, with peak load and flow value capture |
| Power Supply | 220–230V AC, 50 Hz |
Disclaimer – Product ImagesAll photographs and images of instruments displayed on this website are for illustrative purposes only. The actual product may vary slightly in colour, shape, appearance, design, or finish due to model specifications, manufacturing variations, and photographic or display settings. Customers are advised to confirm the applicable product specifications and configuration before placing an order. The images should not be considered an exact representation of the product supplied.
